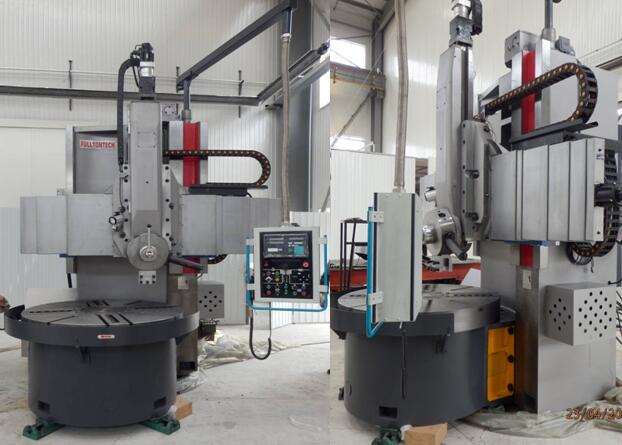

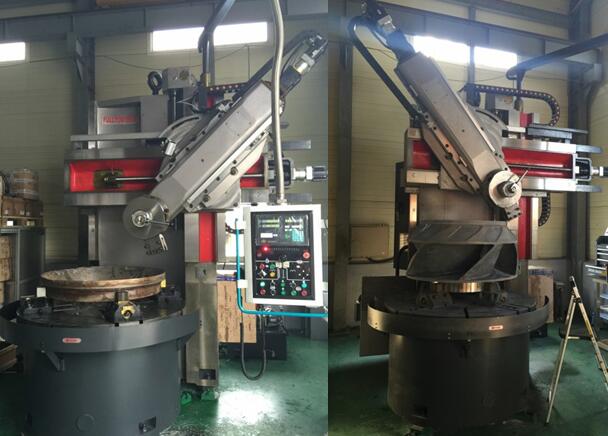

Conventional Single Column Vertical Lathe
Min.Order Quantity:
1 set
Supply Ability:
100 sets/year
Port:
Dalian, China
Payment Terms:
L/C,T/T
Servo motors with ballscrew for X&Z axis feeding.
Option:
1, Two steps heavy gearbox with Danfoss-Denmark drive for heavy machining

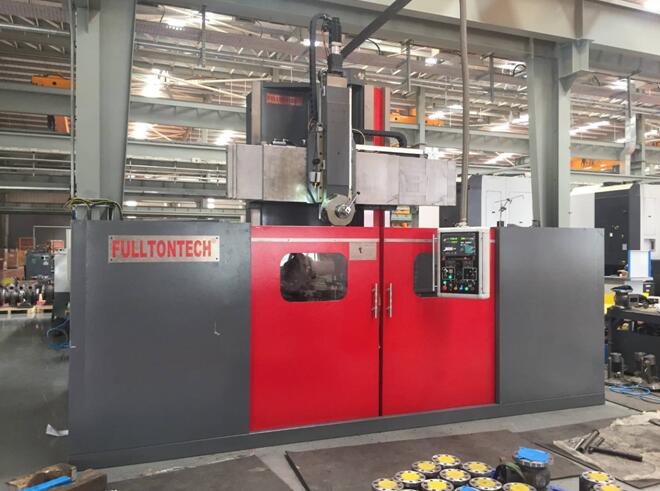

2, Enclosure guard with coolant collection and chip conveyor
Product Detail

Technical data

Unit

C5112

C5116

C5120

C5123

C5126

Max. cutting diameter

mm

1250

1600

2000

2300

2600

Diameter of worktable

mm

1000

1400

1800

2000

2250

Max. height of workpiece

mm

1000

1200

1600

1600

1600

Max. capacity of workpiece

ton

3.2

5

8

8

10

Worktable speed range

r/min

6.3-200

5-160

3.2-100

3.2-100

2-63

Max. travel of the ram

mm

800

800

800

800

800

Note:

1, All the speciation can be customized, please contact with us for details.

2, The detail technical specification and information will be send on request.
