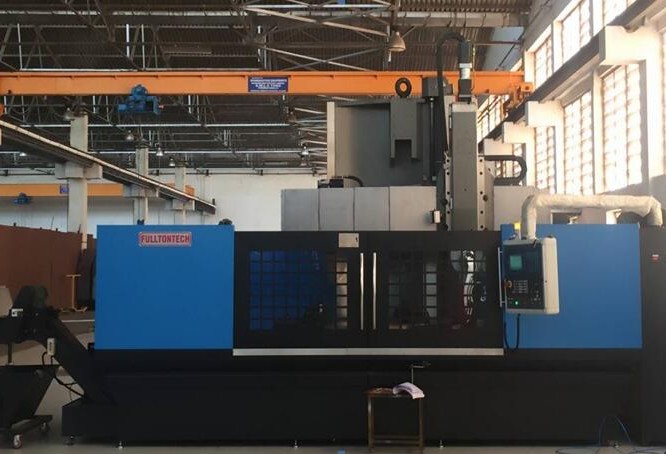

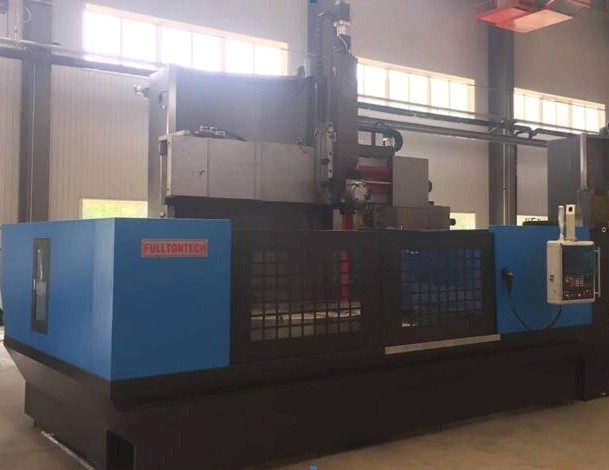

CNC Single Column Vertical Lathe
Min.Order Quantity:
1Set
Supply Ability:
100Sets per Year
Port:
Dalian, China
Payment Terms:
L/C,T/T
Options:
1, Siemens/Fanuc
2, ATC/Tool changer: 6 stations servo type with hirth coupling for each toolpost.
3, Enclosure guard with cooling system and chip conveyor
4, Four stations electric turret/square ram
Product Detail

Specifications

Unit

CK5112

CK5116

CK5120

CK5123

CK5126

Max. cutting diameter

mm

1250

1600

2000

2300

2600

Diameter of worktable

mm

1000

1400

1800

2000

2250

Max. height of workpiece

mm

1000

1200

1600

1600

1600

Max. capacity of workpiece

ton

3.2

5

8

8

10

Worktable speed range

rpm

2-250

2-200

2-100

2-80

2-60

Max. travel of the ram

mm

800

800

800

800

800

Enclosure/Guard with chip conveyor

Option

Option

Option

Option

Option

ATC-tool changer

Option

Option

Option

Option

Option

Toolpost

Manual square tool holder / Electric 4 positions turret

CNC system

Siemens 808/ Siemens 828D / Fanuc 0i TF

Note:

1, All the speciation can be customized, please contact with us for details.

2, The detail technical specification and information will be send on request.
