VTL for train wheels
Min.Order Quantity:
1 Set
Supply Ability:
50 Sets per Year
Seaport:
 Dalian, China
Payment Terms:
 L/C,T/T

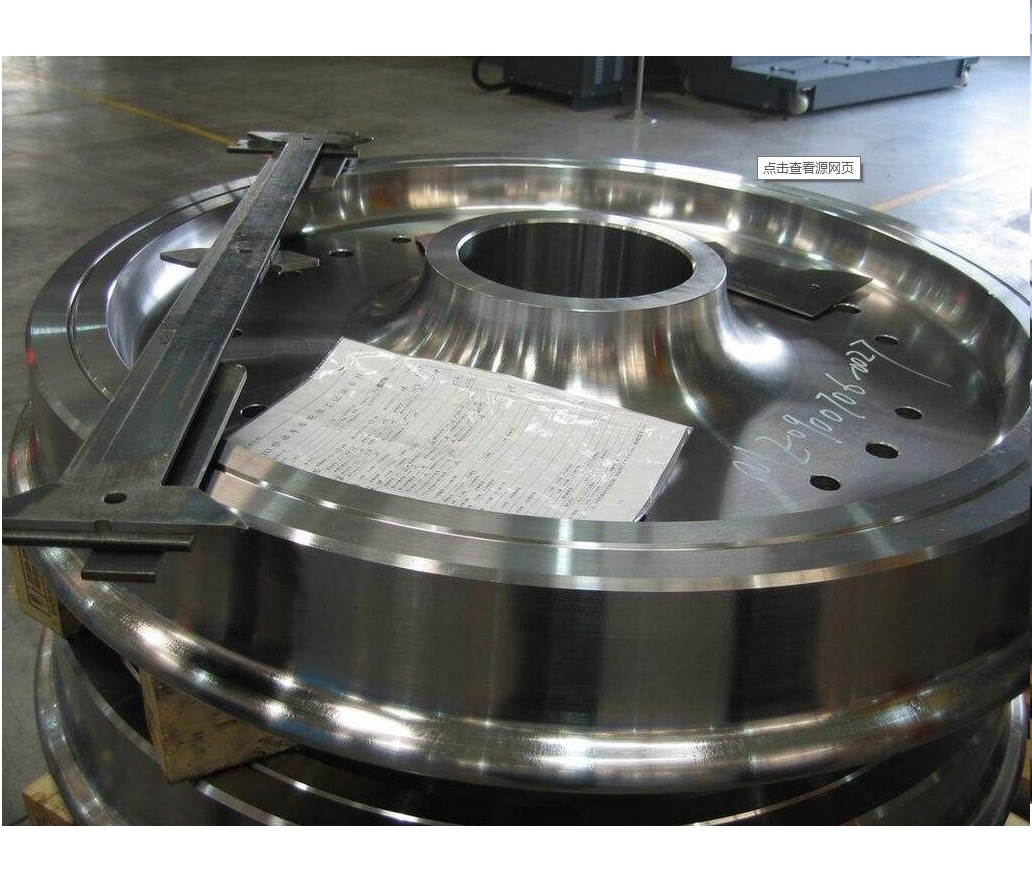

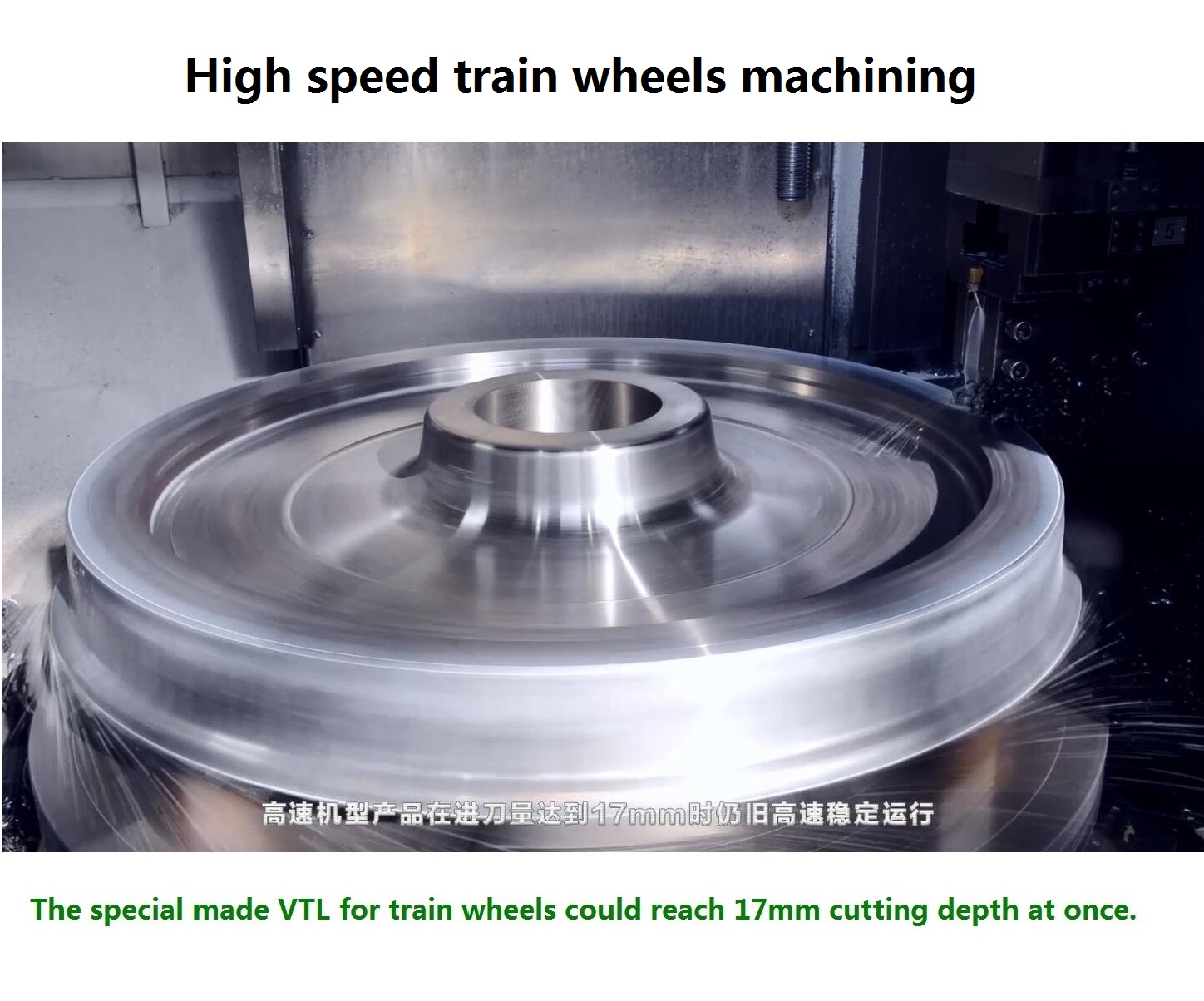

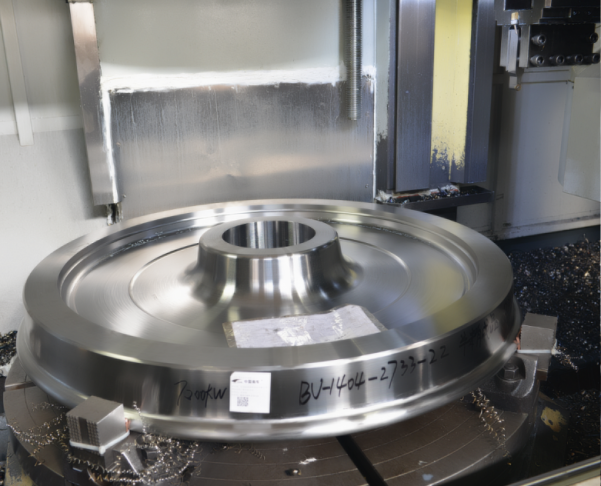

Special made vertical lathe for high speed train wheel machininbg. Machine has high speed turning speed for heavy cutting, could reach 17mm cutting depth at once.
Product Detail

Basic specifications

Unit

CK5112H

CK5116H

CK5120H

CK5123H

Max. cutting diameter

mm

1250

1600

2000

2300

Diameter of worktable

mm

1000

1400

1800

2000

Max. height of workpiece

mm

1000

1200

1600

1600

Max. capacity of workpiece

ton

5

8

10

12

Worktable speed range

rpm

2-400

2-315

2-250

2-200

Max. travel of the ram

mm

800

1000

1000

1000

Enclosure/Guard with chip conveyor

Option

Option

Option

Option

ATC-tool changer

Option

Option

Option

Option

Toolpost

Square ram with square toolpost

CNC system

Siemens 828D / Fanuc 0i TF

Note:

1, All the speciation can be customized, please contact with us for details.

2, The detail technical specification and information will be send on request.
